DESCRIZIONE

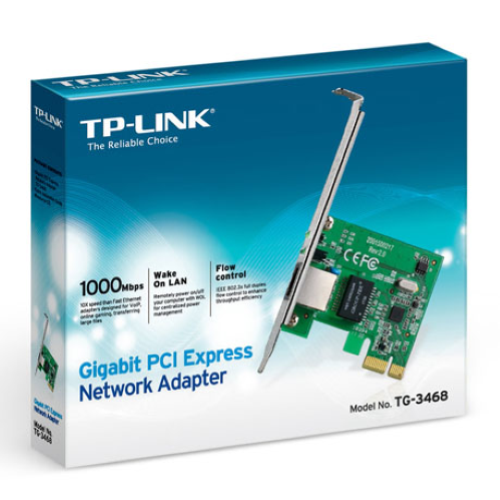

La scheda di rete TP-LINK TG-3468 e' un adattatore Gigabit Ethernet 10/100/1000Mbps altamente integrato ed economico con bus PCIe e la piena conformita' con gli standard IEEE 802.3, IEEE 802.3u e IEEE 802.3ab. La scheda di rete PCIe Gigabit TP-LINK TG-3468 e' una periferica con performances elevate progettata per il Bus ad alta velocita' PCIe. Progettata per supportare l`auto-negoziazione della velocita' di rete 10/100/1000Mbps, il controllo di flusso 802.3x e la tecnologia Wake-on-LAN. TG-3468 Gigabit PCIe e' una scheda di rete Gigabit Ethernet altamente integrata e conveniente e costituisce una buona scelta per aggiornare la rete.
SCHEDA TECNICA
Produttore: TP-LINK Technologies Co., Ltd
Codice produttore: TG-3468
Marca: Tp-Link
Modello prodotto: TG-3468
Tipo prodotto: Scheda Ethernet Gigabit
Interfacce/porte: Interfaccia hostPCI Express x1
Numero totale di porte: 1
Rete (RJ-45): Si'
Numero di porte di rete (RJ-45): 1
Network & Communication: Tecnologia di rete 10/100/1000Base-T
Caratteristiche fisiche: Forma Plug-in Card

_______

Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Network
Maximum data transfer rate	2000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Wake-on-LAN ready
Auto MDIX IEEE
Full duplex
Auto-negotiation
VLAN tagging
Quality of Service (QoS) support
Maximum operating distance	100 m
Design
Internal
Component for	PC
Product colour	Green, Grey
LED indicators	Status
Certification	FCC, BSMI, VCCI
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Sustainability
Sustainability compliance
Weight & dimensions
Width	78.5 mm
Depth	120.8 mm
Height	21.5 mm
Packaging data
Package width	160 mm
Package depth	135 mm
Package height	30 mm
Package weight	100 g
Packaging content
Mounting brackets included
Resource CD
Quick installation guide
Other features
Flow control support
Logistics data
Harmonized System (HS) code	85176990
Technical details
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS
