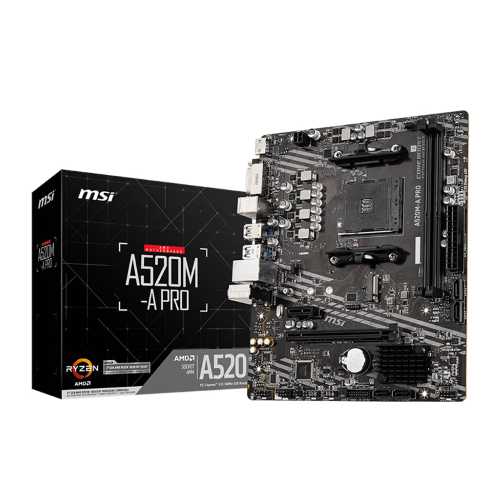

Msi A520M-A Pro 7C96-001R Mainboard Micro Atx Ddr4 Socket Am4 Hdmi Dvi
Use Mouse Wheel to Zoom In/Out
Msi A520M-A Pro 7C96-001R Mainboard Micro Atx Ddr4 Socket Am4 Hdmi Dvi
Users feedback
| Price: | €72,90 |
|---|---|
| Item code: | MSI7C96-001R |
| Brand: | 4719072749927 |
| Availability: | Available Consegna in 24/48 ore! |
| Quantity: |
Description
La serie PRO aiuta gli utenti a lavorare in modo piu' intelligente offrendo un'esperienza efficiente e produttiva. Dotate di funzionalita' stabili e assemblaggio di alta qualita', le schede madri della serie PRO offrono non solo flussi di lavoro professionali ottimizzati, ma anche una minore risoluzione dei problemi e longevita'.
_______
_______
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory |  |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0, SATA |
| Number of HDDs supported | 5 |
| RAID support | |
| RAID levels | 0, 1, 10 |
| Graphics | |
| On-board graphics card |  |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| Network | |
|---|---|
| Ethernet LAN | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | |
| Features | |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Number of mounting holes | 8 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 200 mm |
| Height | 60 mm |
| Other features | |
| mSATA ports quantity | 0 |
| Weight | 698 g |
