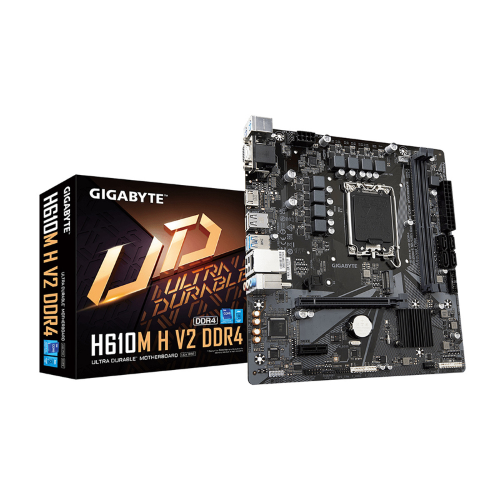

Gigabyte Ga-H610M H Ddr4 V2 Mainboard Micro Atx Ddr4 Socket 1700
Use Mouse Wheel to Zoom In/Out
Gigabyte Ga-H610M H Ddr4 V2 Mainboard Micro Atx Ddr4 Socket 1700
Users feedback
| Price: |
|
|---|---|
| Item code: | GIGH610MHV2 |
| Brand: | 4719331851743 |
| Availability: | Available Consegna in 24/48 ore! |
| Quantity: |
Description
cheda madre Intel H610 con design VRM digitale a 6+1+1 fasi ibride, design PCIe 4.0*, Gen3 x4 M.2, Intel GbE con cFosSpeed, resistenza anti-zolfo, Smart Fan 6
Supporta processori serie Intel Core di 13a/12a generazione
DDR4 senza buffer non ECC a doppio canale, 2 DIMM
Design VRM digitale ibrido 6+1+1
LAN Intel GbE con software cFosSpeed €‹€‹Internet Accelerator
NVMe PCIe 3.0 x4 M.2
Condensatori audio e protezione antirumore audio di alta qualita'
Smart Fan 6 e' dotato di sensori di temperatura multipli, connettori della ventola ibridi con FAN STOP
Centro APP GIGABYTE, utilizzo semplice e facile
Progettazione di resistori anti-zolfo
_______
Supporta processori serie Intel Core di 13a/12a generazione
DDR4 senza buffer non ECC a doppio canale, 2 DIMM
Design VRM digitale ibrido 6+1+1
LAN Intel GbE con software cFosSpeed €‹€‹Internet Accelerator
NVMe PCIe 3.0 x4 M.2
Condensatori audio e protezione antirumore audio di alta qualita'
Smart Fan 6 e' dotato di sensori di temperatura multipli, connettori della ventola ibridi con FAN STOP
Centro APP GIGABYTE, utilizzo semplice e facile
Progettazione di resistori anti-zolfo
_______
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ?ompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Unbuffered memory |  |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Graphics | |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Number of chassis fan connectors | 2 |
| Serial port headers | 1 |
| TPM connector | |
| RGB LED pin header | |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| Line-in | |
| Headphone outputs | 1 |
| Microphone in | |
| Network | |
| Ethernet LAN | |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi |  |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 818 g |
| Battery | |
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging content | |
| Batteries included | |
| Bundled software | Norton Internet Security LAN bandwidth management software |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm |
| Technical details | |
| Warranty period | 3 year(s) |
