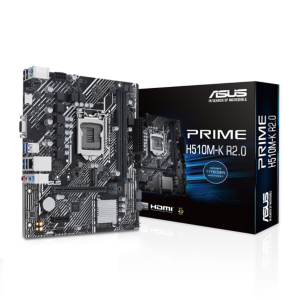

Asus Prime H510M-K R2.0 Mainboard Micro Atx Ddr4 Socket 1200
Use Mouse Wheel to Zoom In/Out
Asus Prime H510M-K R2.0 Mainboard Micro Atx Ddr4 Socket 1200
Users feedback
| Price: |
|
|---|---|
| Item code: | ASUH510MK-R2.0 |
| Brand: | 4711387113189 |
| Availability: | Available Consegna in 24/48 ore! |
| Quantity: |
Description
Scheda madre micro ATX Intel H470 (LGA 1200) con PCIe 4.0, slot M.2 da 32 Gbps, HDMI, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel Optane Memory Ready , FAN Xpert, Armoury Crate, 5X PROTEZIONE III
Socket Intel LGA 1200: pronto per processori Intel di 11a e 10a generazione
Connettivita' ultraveloce: PCIe 4.0, slot M.2 da 32 Gbps, 1 Gb Ethernet e USB 3.2 Gen 1
Raffreddamento completo: dissipatore di calore PCH e Fan Xpert
5X Protection III: protezioni hardware multiple per una protezione completa
_______
Socket Intel LGA 1200: pronto per processori Intel di 11a e 10a generazione
Connettivita' ultraveloce: PCIe 4.0, slot M.2 da 32 Gbps, 1 Gb Ethernet e USB 3.2 Gen 1
Raffreddamento completo: dissipatore di calore PCH e Fan Xpert
5X Protection III: protezioni hardware multiple per una protezione completa
_______
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ?ompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory |  |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Wi-Fi |  |
| Features | |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H510 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | EFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 203 mm |
